Export Database Schema

Databricks for Jira creates an easy to navigate and query database schema.

• Main Export

• Tempo Capacity Planner

• Tempo Timesheets

• Xray Test Management

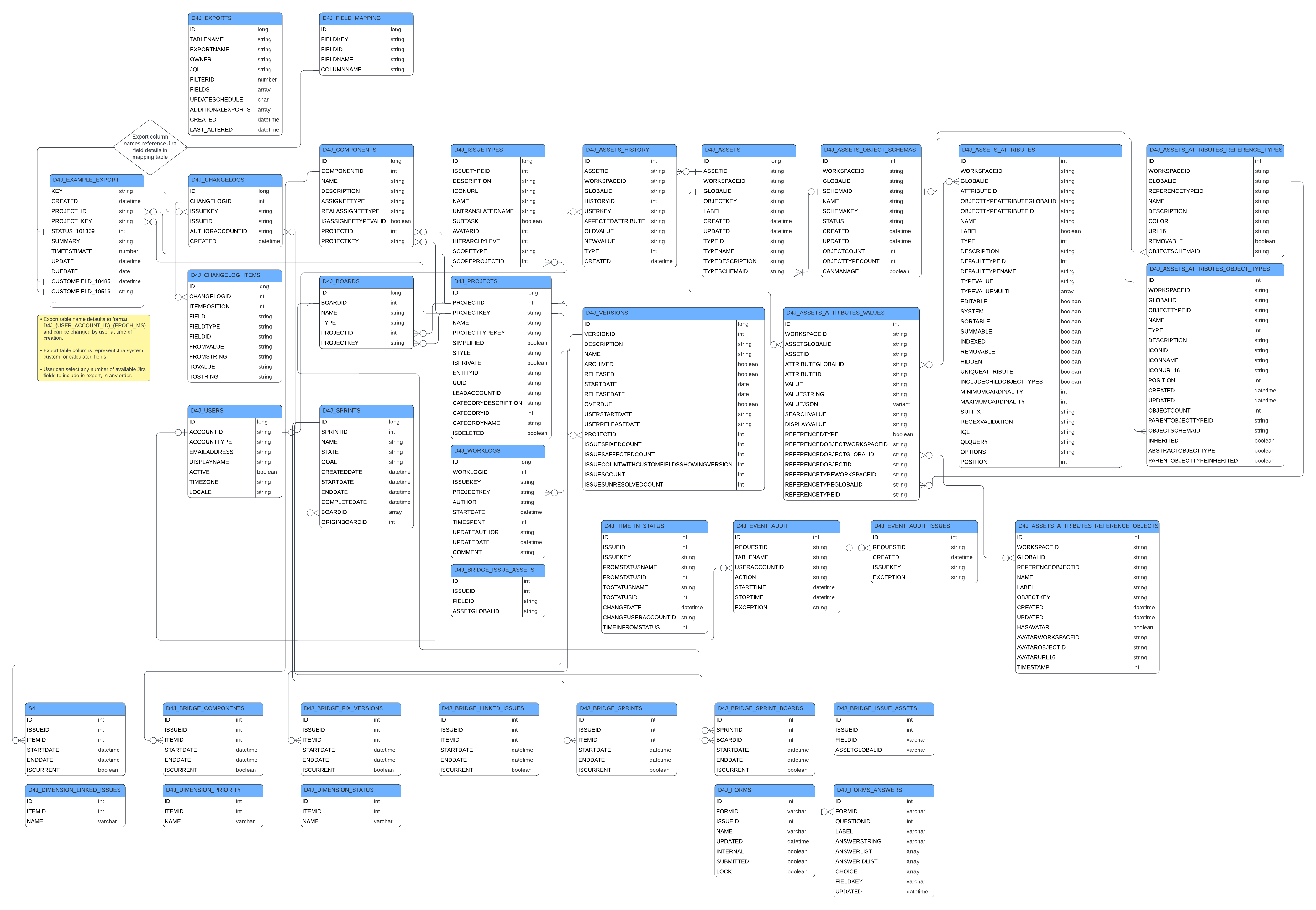

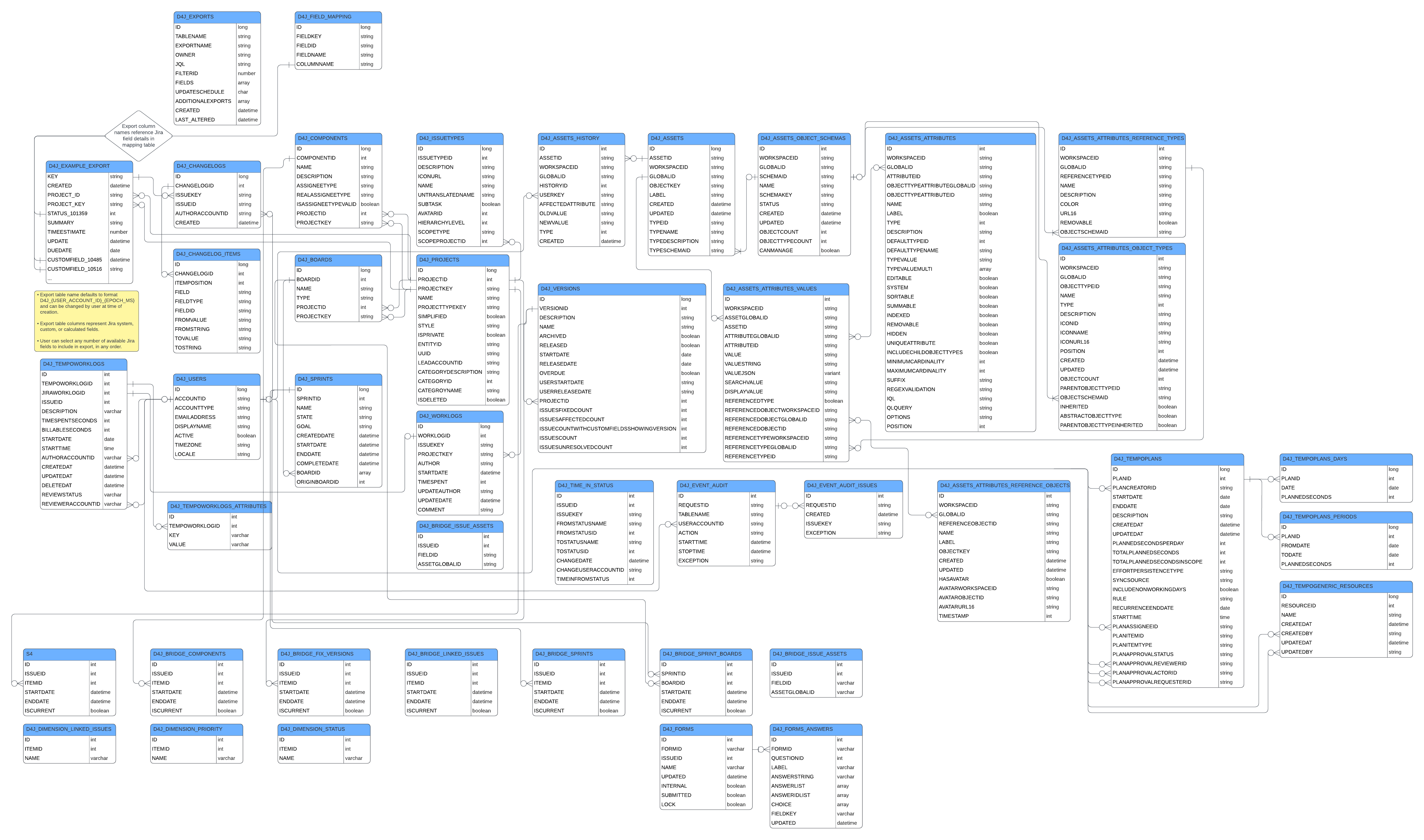

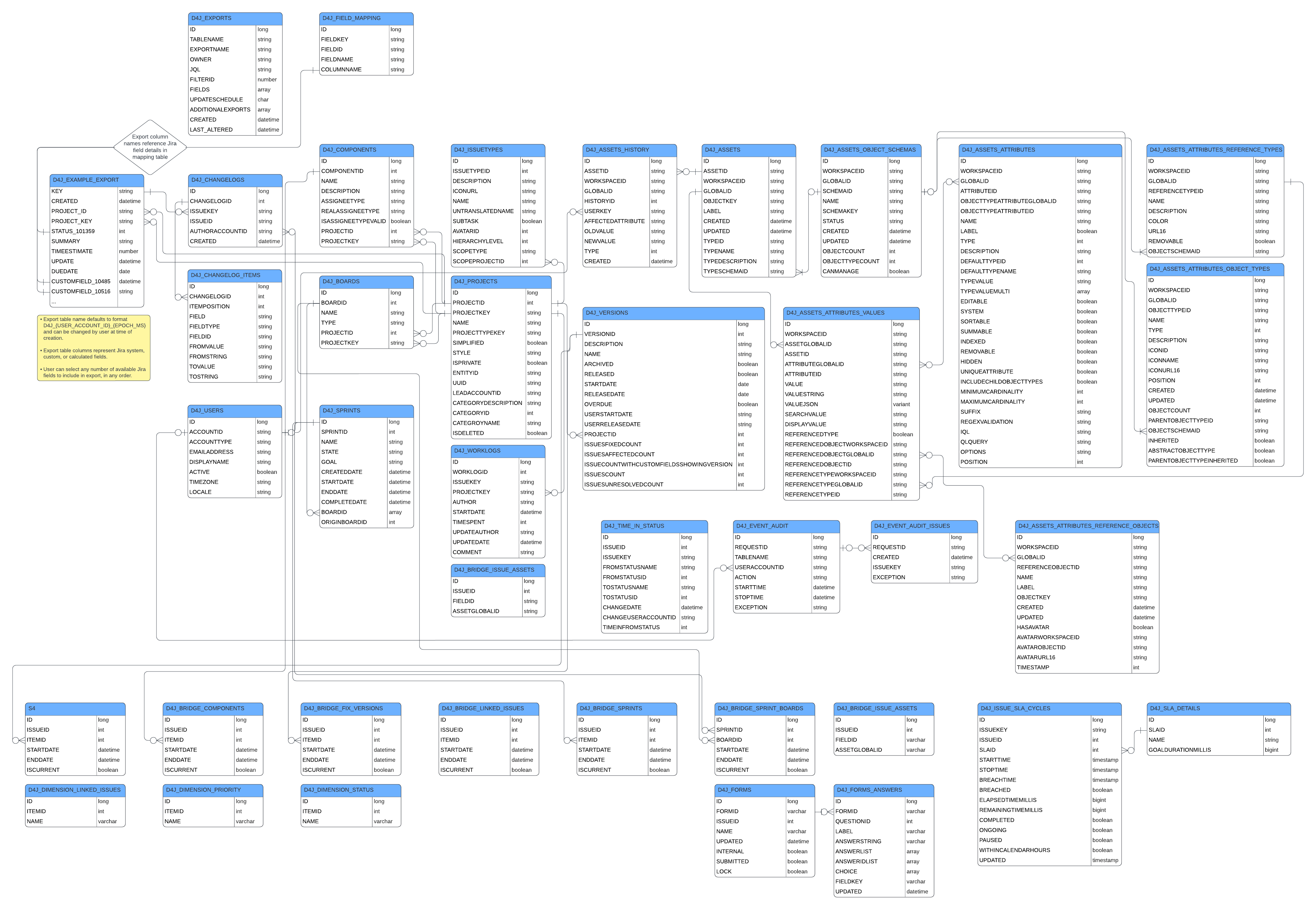

Main Export

• The main work item table columns will depend on what fields were selected during the export.

• Export main work item table name defaults to format D4J_{USER_ACCOUNT_ID}_{EPOCH_MS} and can be changed by user at time of creation.


• Export table columns represent Jira system, custom, or calculated fields.


• User can select any number of available Jira fields to include in export, in any order.

Tempo Capacity Planner

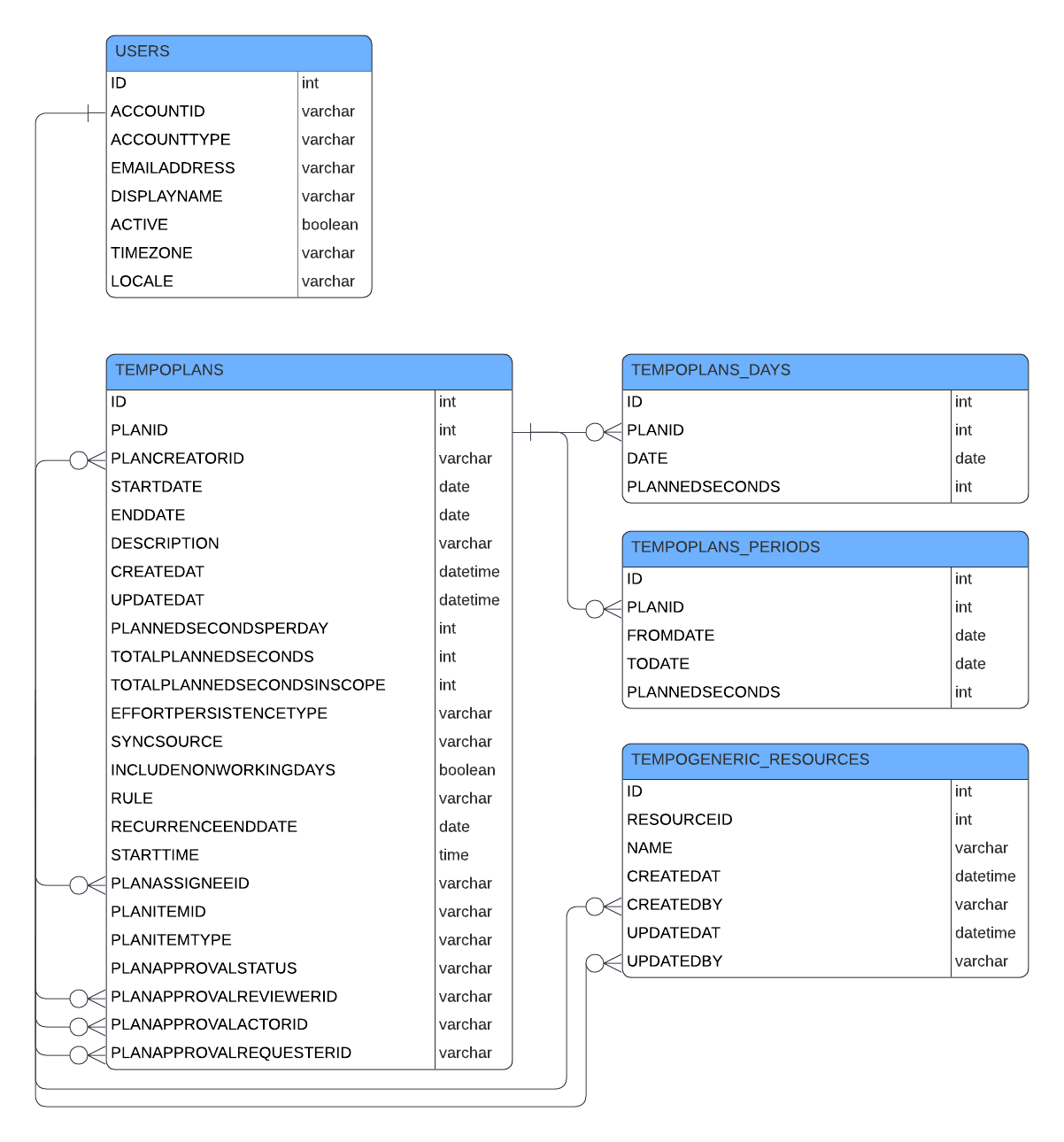

Tempo Capacity Planner data exports will populate a number of other tables, modeled below. Note that some tables pictured may be related to work item data exports.

Tempo Timesheets

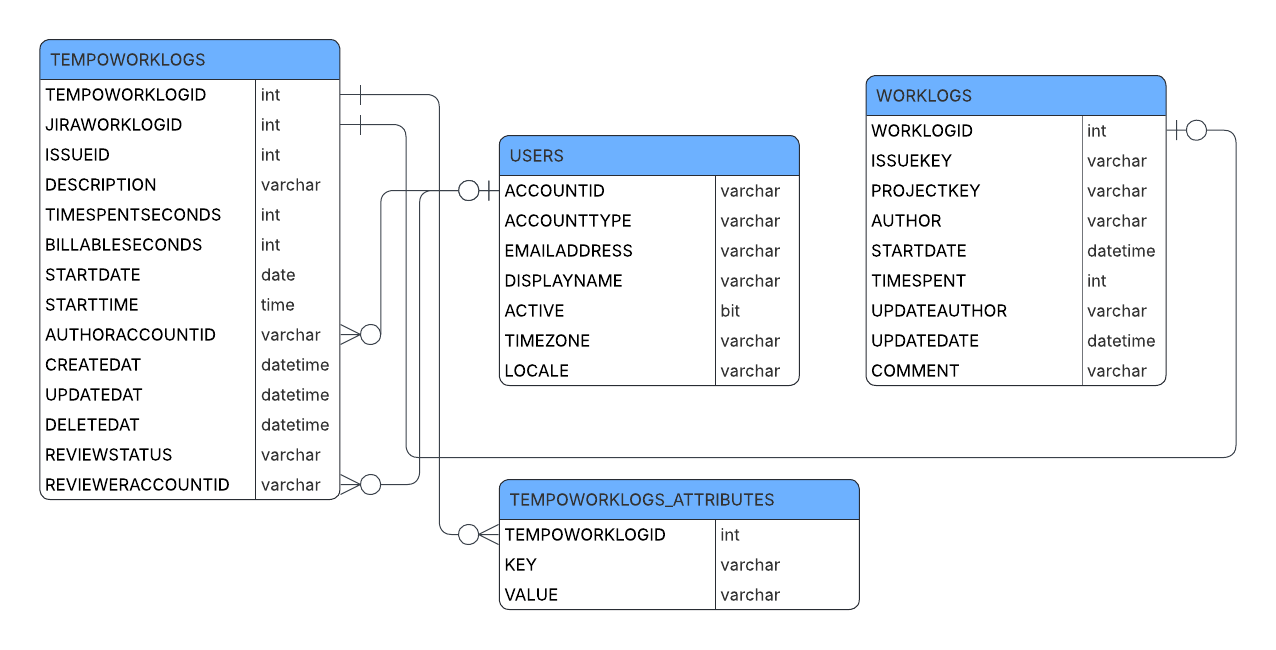

Tempo Timesheets exports will populate a number of other tables, modeled below. Note that some tables pictured may be related to work item data exports.

Xray Test Management

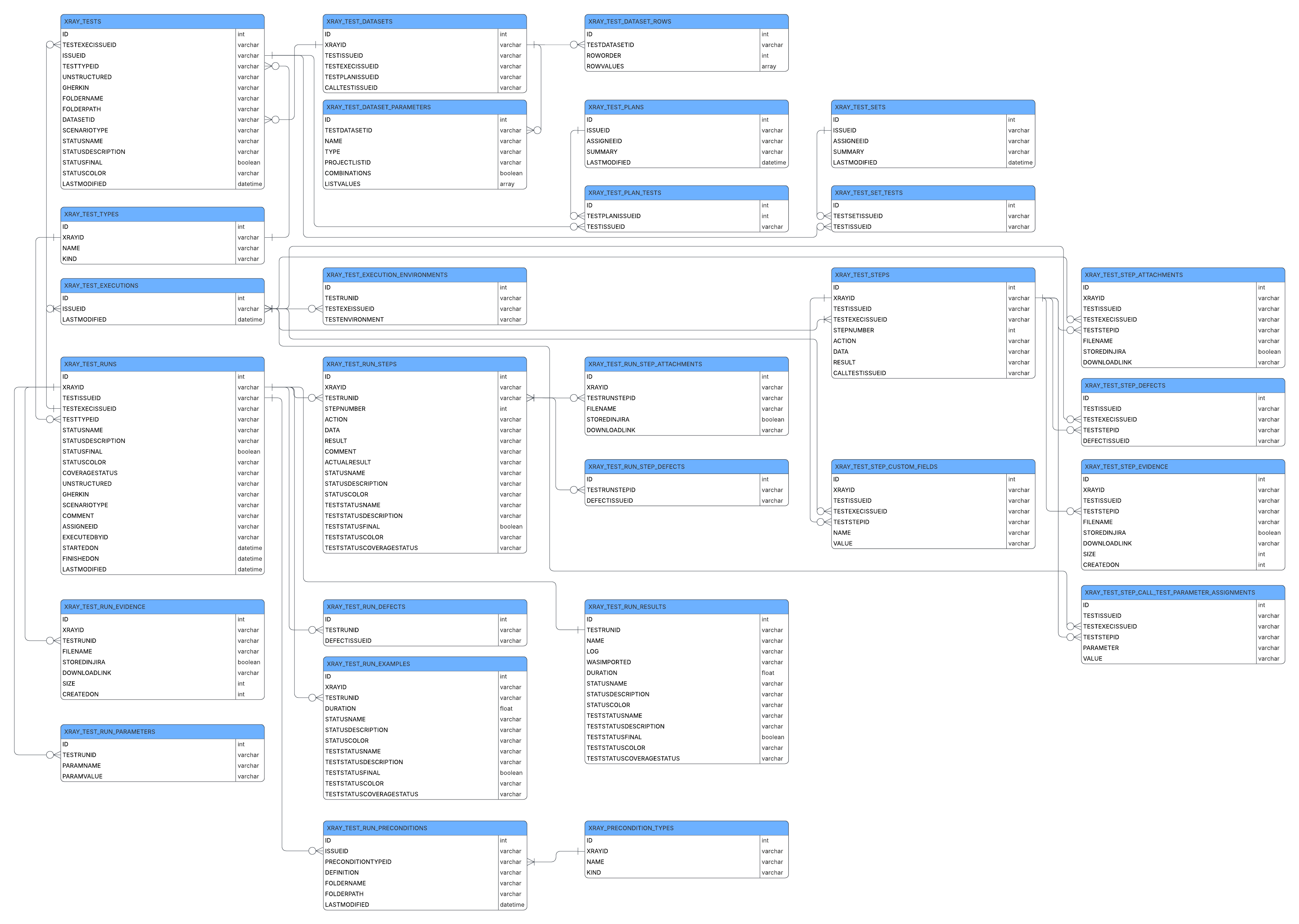

Xray Test Management data exports will populate a number of other tables, modeled below. Note that some tables pictured may be related to work item data exports.
